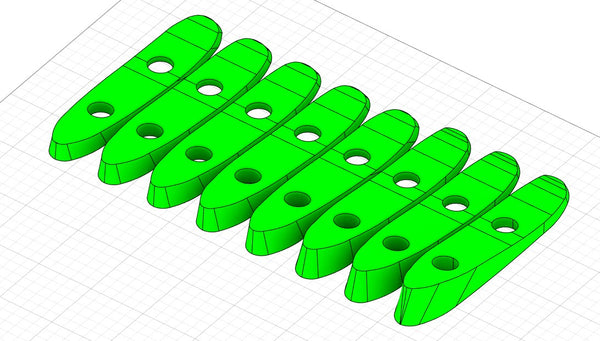

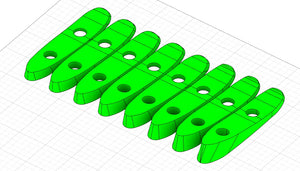

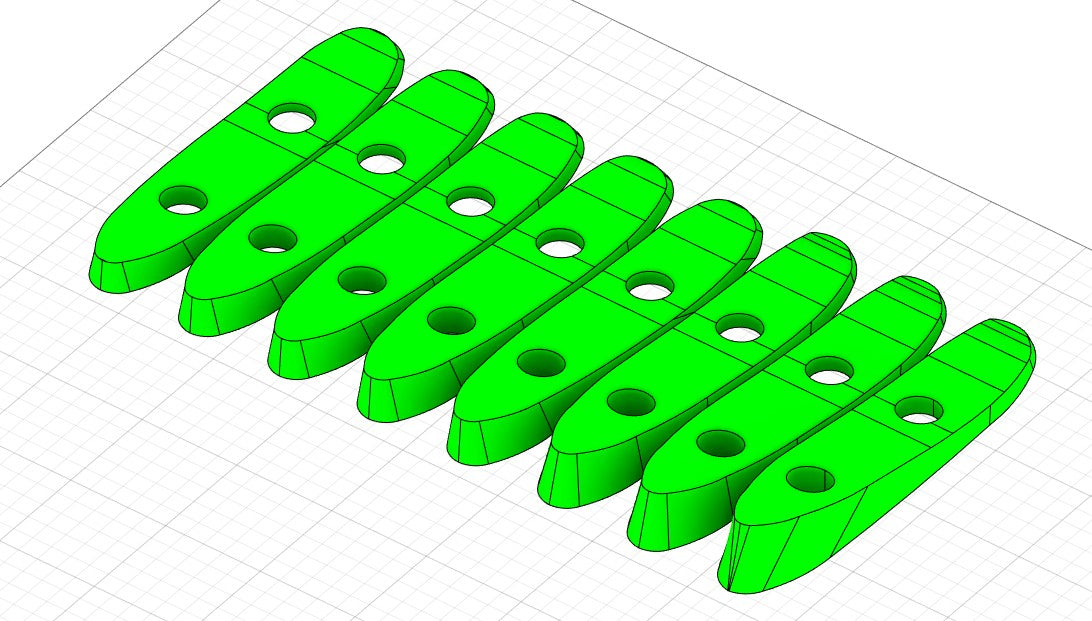

A set of Eight Negative Shims.
These shims fit the C (Conical) mast tail, as well as the EfoilSolutions Tails for the C mast.
Shims (-1) to (-5) match the angles of the standard mast shims. Shims (-6) to (-8) are designed to handle some of the ne C wings at higher speeds.

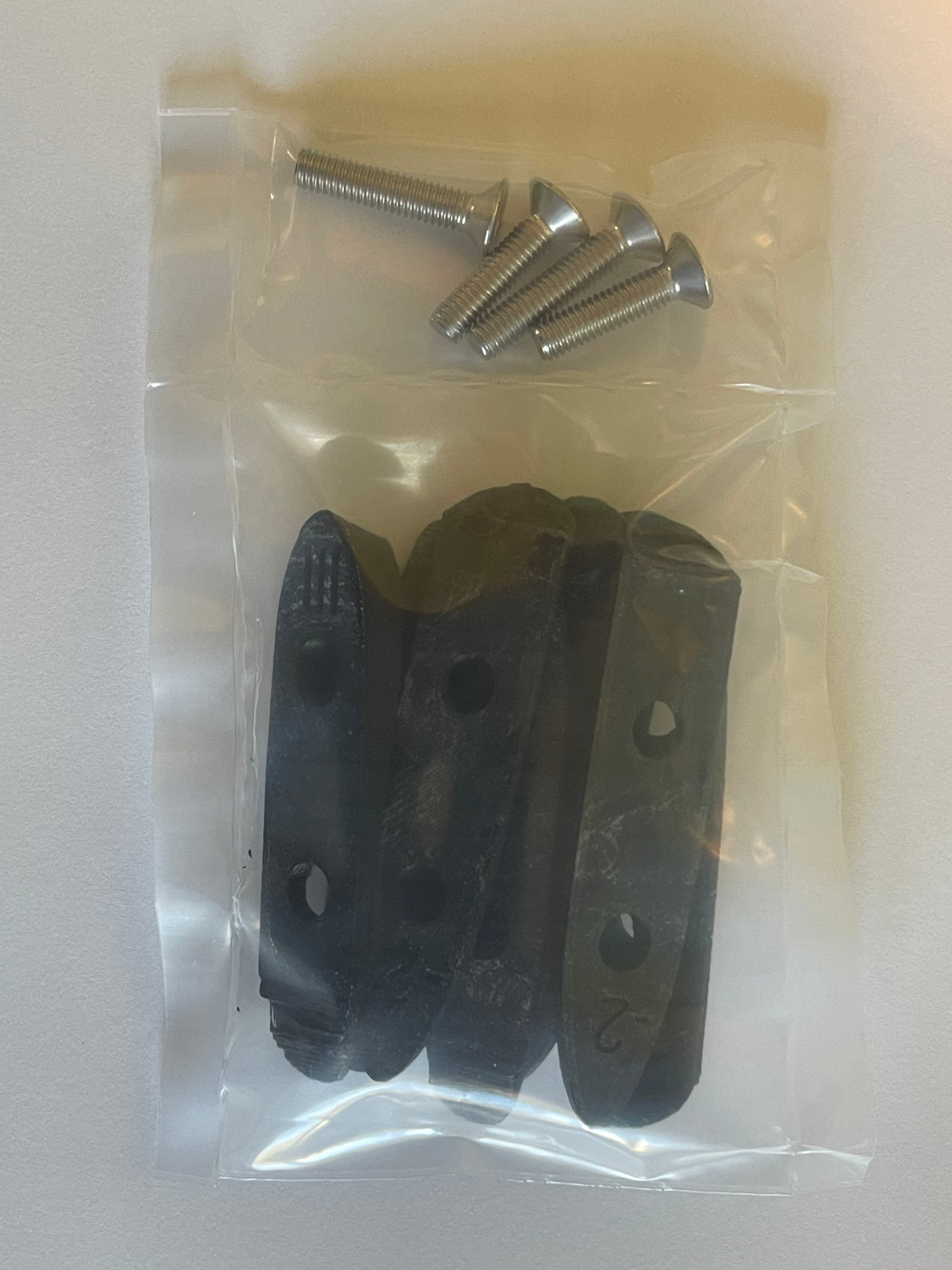

The shims are 3D printed with Carbon Reinforced PC plastic. A set of longer two 25mm and two 30mm SS M6 screws are provided as well.

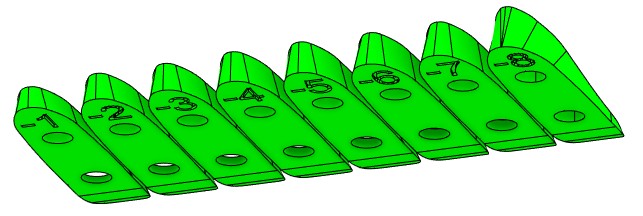

Back Shims Angles (dec. deg.)
(-1): 5.0
(-2): 5.5
(-3): 6.0
(-4): 6.5
(-5): 7.0
(-6): 8.0
(-7): 9.0
(-8): 10.0
